EDGE-RK3576
Product overview
RK3576 Ruixin Micro's second generation 8nm high-performance AIOT platform integrates an independent 6TOPS(Tera Operations Per Second, trillions of operations per second) NPU (Neural Network Processing Unit) for processing artificial intelligence-related tasks. In addition, the RK3576 also supports UFS(Universal Flash Storage, Universal Flash Storage) storage, providing efficient data storage and reading capabilities.
8-core CPU,6.0T computing power
· NPU supports 6 modes of mixed operation, perfect balance between performance, power consumption and operation accuracy
· Configure high-performance UFS flash memory to run faster and more stable
-Supports network model transformation for frameworks such as TensorFlow/MXNet/PyTorch/Caffe
· Reserved interface rich, support a variety of peripheral expansion
Specifications
EDGE-RK3576 is the second generation 8nm high-performance platform processor of Ruixin Micro-Rockchip RK3576, equipped with four A72 cores + four A53 cores, with a dominant frequency of 2.2GHz,Mali-G52 MC3 MP4 GPU, built-in 6TOPS super computing power NPU, supports 4k ultra-clear display, three-screen different display, supports WiFi6, supports wireless network communication such as dual network ports, 5G/4G modules, etc. Rich external interface, can meet a variety of video input and output, in -30 ℃ to 80 ℃ environment can be reliable operation.
|
Edge ComputingBoxFunction and Description |
|||
|
Function |
Description |
||
|
CPU |
RK3576quad-coreCortex-A72 +quad-coreCortex-A53CPUArchitecture, main frequencythe highest 2.2GHz |
||
|
NPU |
supports INT4,INT8,INT16,FP16,BF16 and TF32 multi-mode hybrid computing, INT8 can support up to 6.0TOPS |
||
|
GPU |
Mali-G52 MC3GPU, supportOpenGL ES1.1/2.0/3.2, OpenCL2.0 FULL Profile,vulkan 1.1 supports AFBC (framebuffer compression) |
||
|

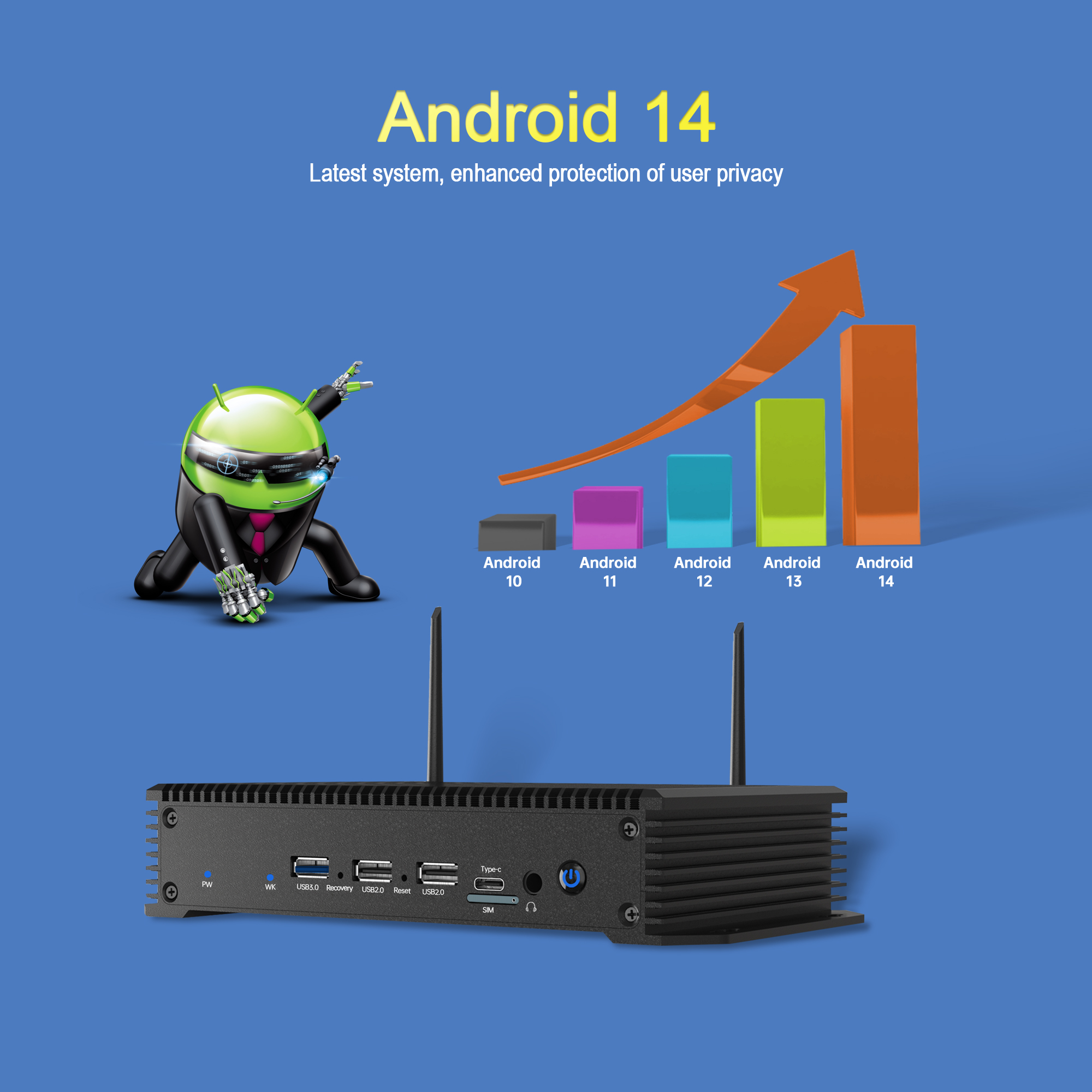

Android OS |
Android14/Debian/BuildRoot/Ubuntu |
||
|
Flash (Option 1) |
UFS |
optional UFS3.1, capacity 128G (customizable256G/512G/1T) |
|
|
EMMC |
canselectionEMMC 5.1 capacity32G/64G |
||
|
DDR |
LPDDR5optional4G/8G/16G |
||
|
Multimedia Display |
support single channelMIPI-DSI (channel 4 wire);supports up to 1920 x1080 @ 60Hz |
||
|
type C interface supportDisplayPort Altmode, can be expanded to DP output, up to 2560 x1600 @ 60Hz |
|||
|
HDMI 2.1supporthighest4K120Hzdisplay,supports CEC and ARC,supportHDCP2.3/1.4, |
|||
|
cansupportdoublescreen different display;(customizable three-screen display) |
|||
|
video decoding supports H.264, H.265, VP9, AV1, AVS2, etc, up8K @ 30fps or 4K @ 120fps. Video encoding supports H.264 and H.265 up to 4K @ 60fps, and JPEG encoder/decoder up to 4K @ 60fps. |
|||
|

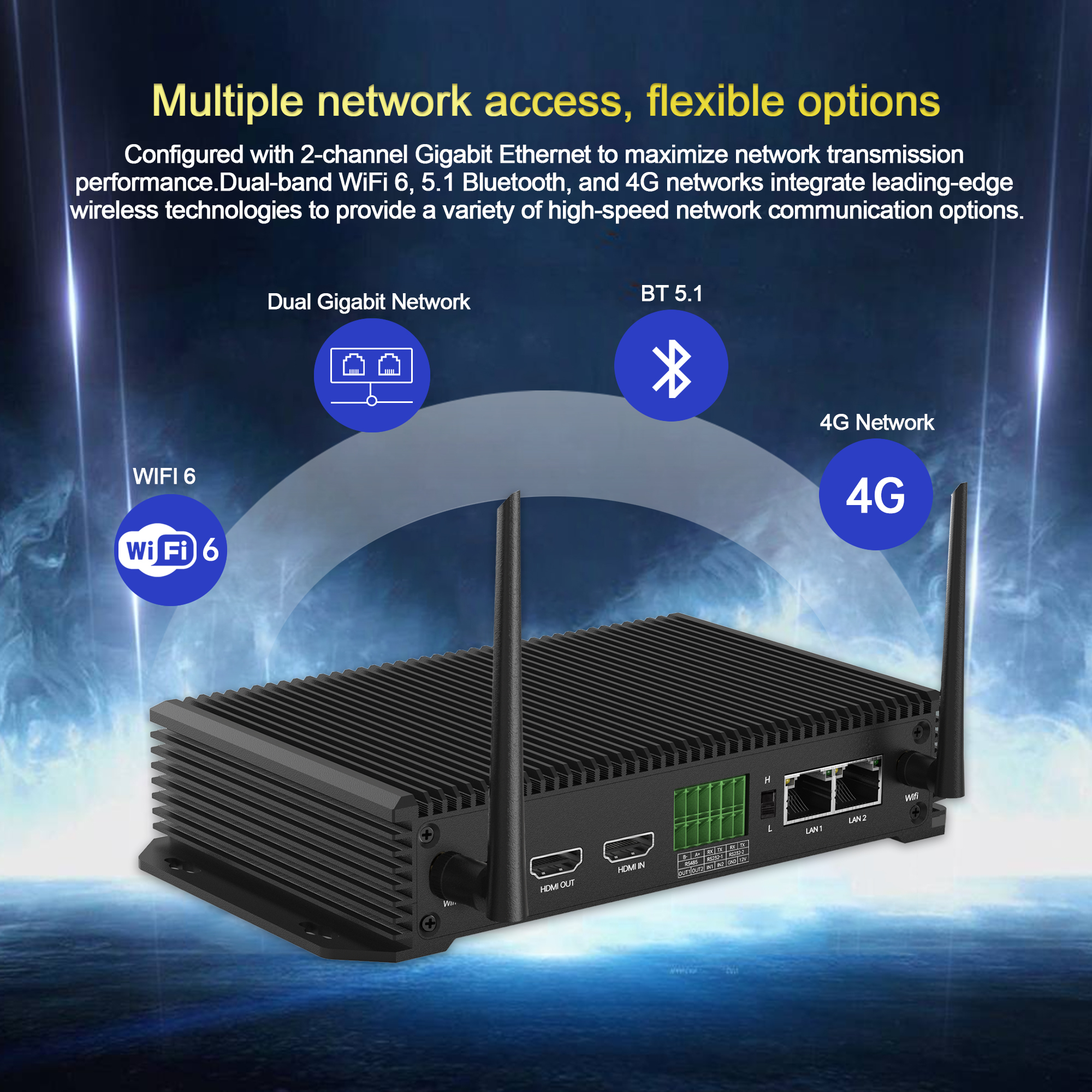

Network |
RJ45 Gigabit Network Cardx2; |
||
|
WiFi support1Tx/1Rx 802.11 ac/a/B/g/n Wi-Fi; Bluetooth support BT 5.2 |
|||
|
Camera |
support 1 way MIPI-CSI (channel 4 wire) built-in |
||
|
LCD |
support 1 way MIPI-DSI (channel 4 wire) built-in |
||
|
Power |
12V/2A |
||
|
working temperature |
-10 ℃~45 ℃ |
||
|
storage temperature |
-20 ℃~70 ℃ |
||
|
Working humidity |
20%-80% |
||
|
Maximum power consumption |
9.6W (bare metal) |
||
|

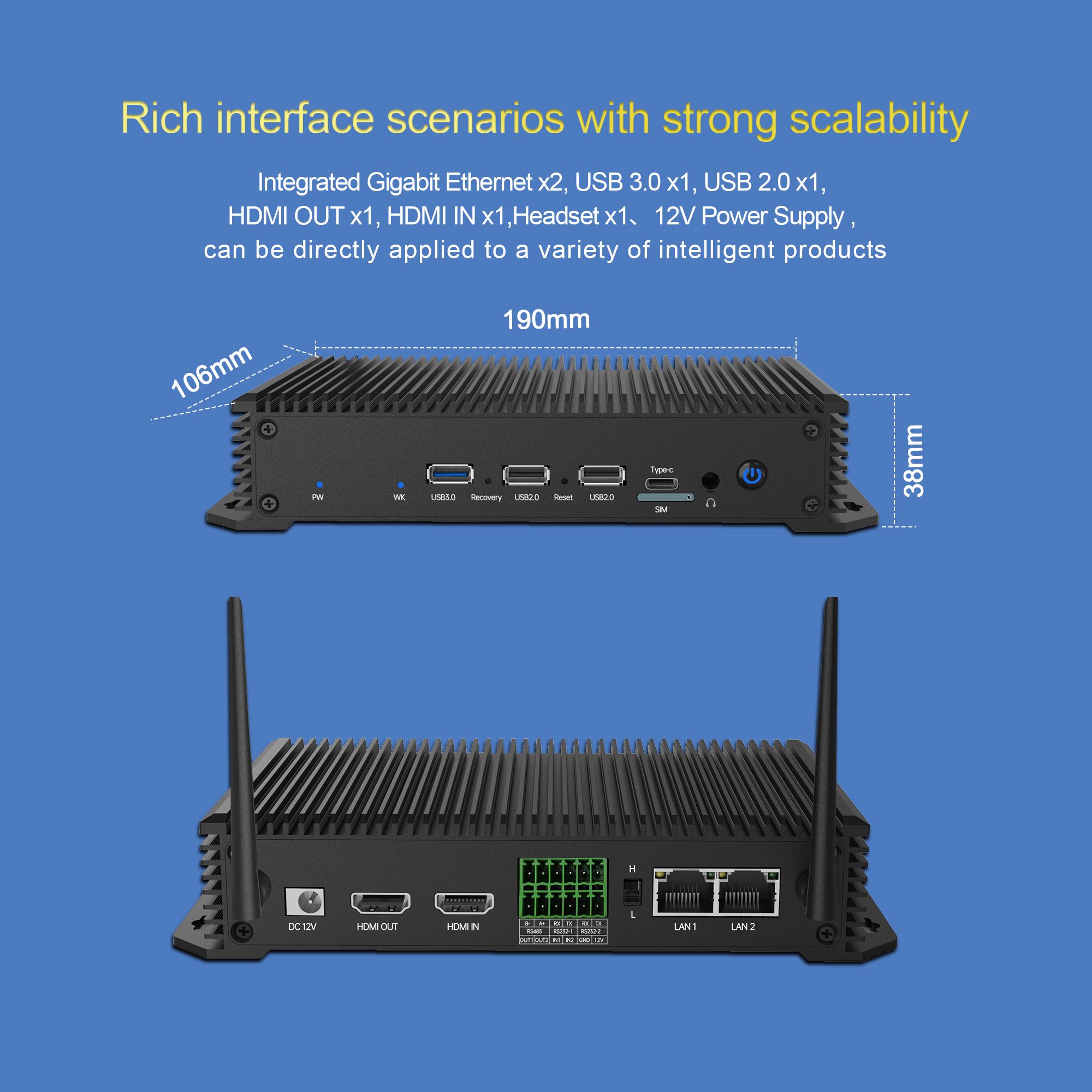

Dimensions |
190mm * 106mm * 37.7mm (length * width * height) |
||
|
net weight |
566G |
||
|
external expansion interface |
USB3.0 *1 |
headphone holder*1 |
|
|
USB2.0 *2 |
Type-C*1 |
||
|
HDMI OUT*1 |
RS485 * 1 |
||
|
HDMIIN*1 |
GPIO IN*2 |
||
|
RJ45 *2 |
GPIO OUT*2 |
||
|
RS232 * 2 |
|||
Product Performance
Industry Applications
EDGE-RK3576 processor integrates high-performance NPU and UFS, supports a variety of display interfaces, and is suitable for medical image positioning, industrial control, edge computing and laptop, etc. It has powerful computing power, low power consumption and intelligent expansion functions.
