EDGE-RK3588S
Product overview

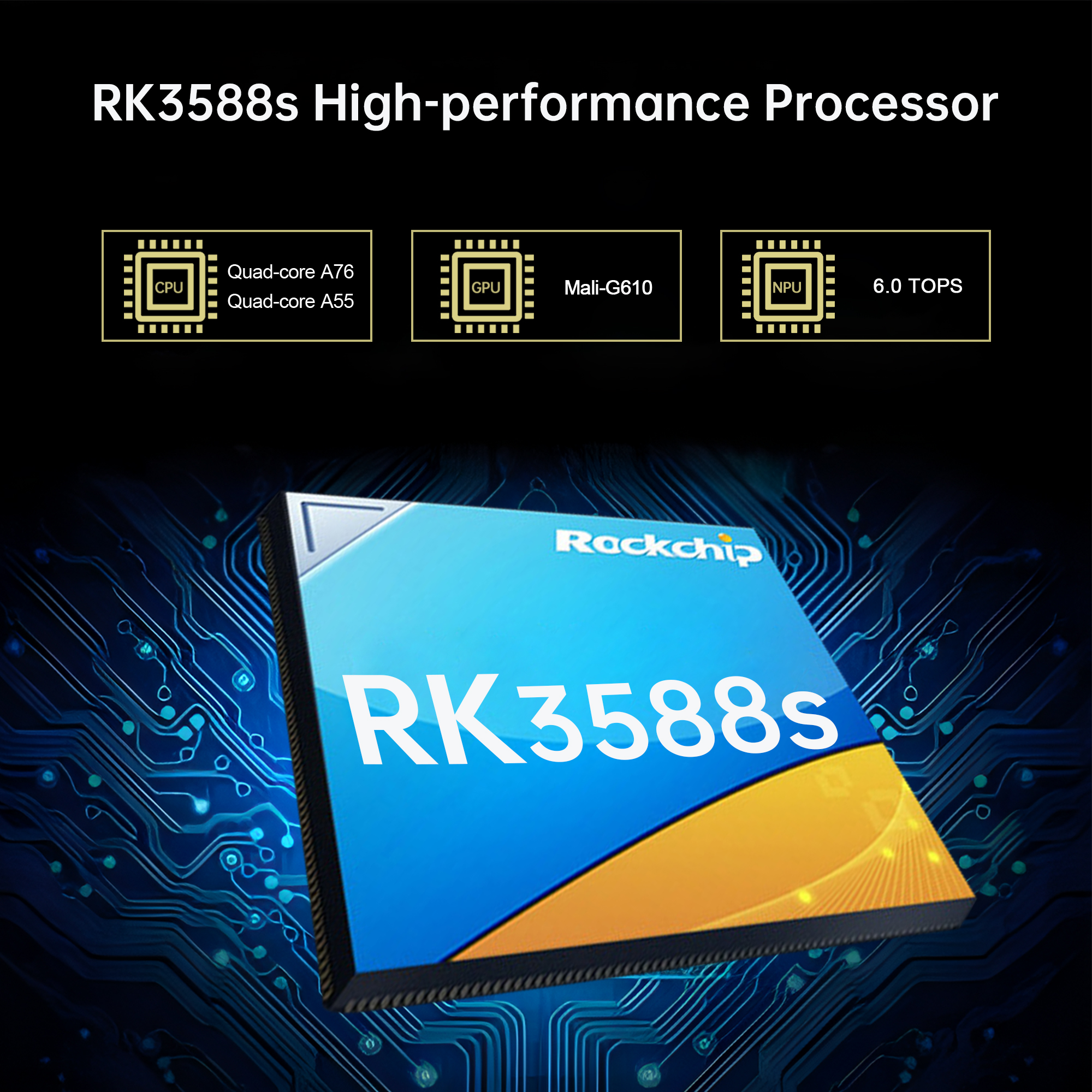

RK3588S is a new generation of Rockchip flagship AIoT chip and adopts 8nm LP process. With eight nuclear 64-bit CPU, the main frequency is as high as 2.4GHz; Integrated ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU can provide 6Tops computing power and support mainstream in-depth learning framework. RK3588S with strong performance can bring more optimized performance to various AI application scenarios.
, equipped with eight nuclear 64-bit CPU, the main frequency is as high as 2.4GHz, and the ARM Mali-G610 MP4 quad-core GPU is integrated;
· Support 8K video codec;
· Support NVMe SSD hard disk expansion;
Multi-channel input and output, multi-screen display, full-function Type-c, M.2NGFF PCIE2.0 interface, gigabit network port, 4 * 16bit channel DDR, maximum support 32GB;
-Built-in AI accelerator NPU, which provides 6Tops computing power and supports mainstream deep learning frameworks;
Specifications
|
CPU |
RockChip RK3588S |
|
eight nuclear64position (4 × Cortex-A76 4 × Cortex-A55), 8nm advanced process, with a dominant frequency of up2.4GHz |
|
|
GPU |
ARM Mali-G610 MP4quad-coreGPU |
|
supportOpenGL ES3.2 / OpenCL 2.2/Vulkan1.1,450GFLOPS |
|
|
NPU |
NPUCounting force up6 TOPS, SUPPORTINT4/INT8/INT16mixed operation |
|
can be realized based onTensorFlow / MXNet/ PyTorch / Caffeand other series frameworks. |
|
|
ISP |
Integration48MP ISPHDR&3DNR |
|
codec |
video decoding: 8K @ 60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K @ 60fps AV1 1080P @ 60fps MPEG-2/-1/VC-1/VP8video encoding: 8K @ 30fpsencoding, supportH.265 / H.264 * Maximum achievable32Road1080P @ 30fpsdecoding and16Road1080P @ 30fpscoding |
|
Memory |
LPDDR4X |
|
4GB/8GB/16GB 64bit LPDDR4/LPDDR4x (up32GB) |
|
|
storage |
supporteMMC5.1,SDIO3.0 |
|
16GB/32GB/64GB/128GBeMMC |
|
|
TFcard |
1×TFCard |
|
Ethernet |
1×1000Mbps Ethernet (RJ45) |
|
Display Output |
1× HDMI2.1(8K @ 60fpsor4K @ 120fps) |
|
2× MIPI-DSI(4K @ 60fps) |
|
|
1× DP1.4(8K @ 30fps) |
|
|
Camera |
3 x 4lane MIPI-CSI |
|
Audio |
1×3.5mmheadphone interface |
|
1× HDMI2.1Audio Output |
|
|
PCIE |
1× M.2(PCIe2.0) interface, extensible2242 PCIe2.0 WIFI |
|

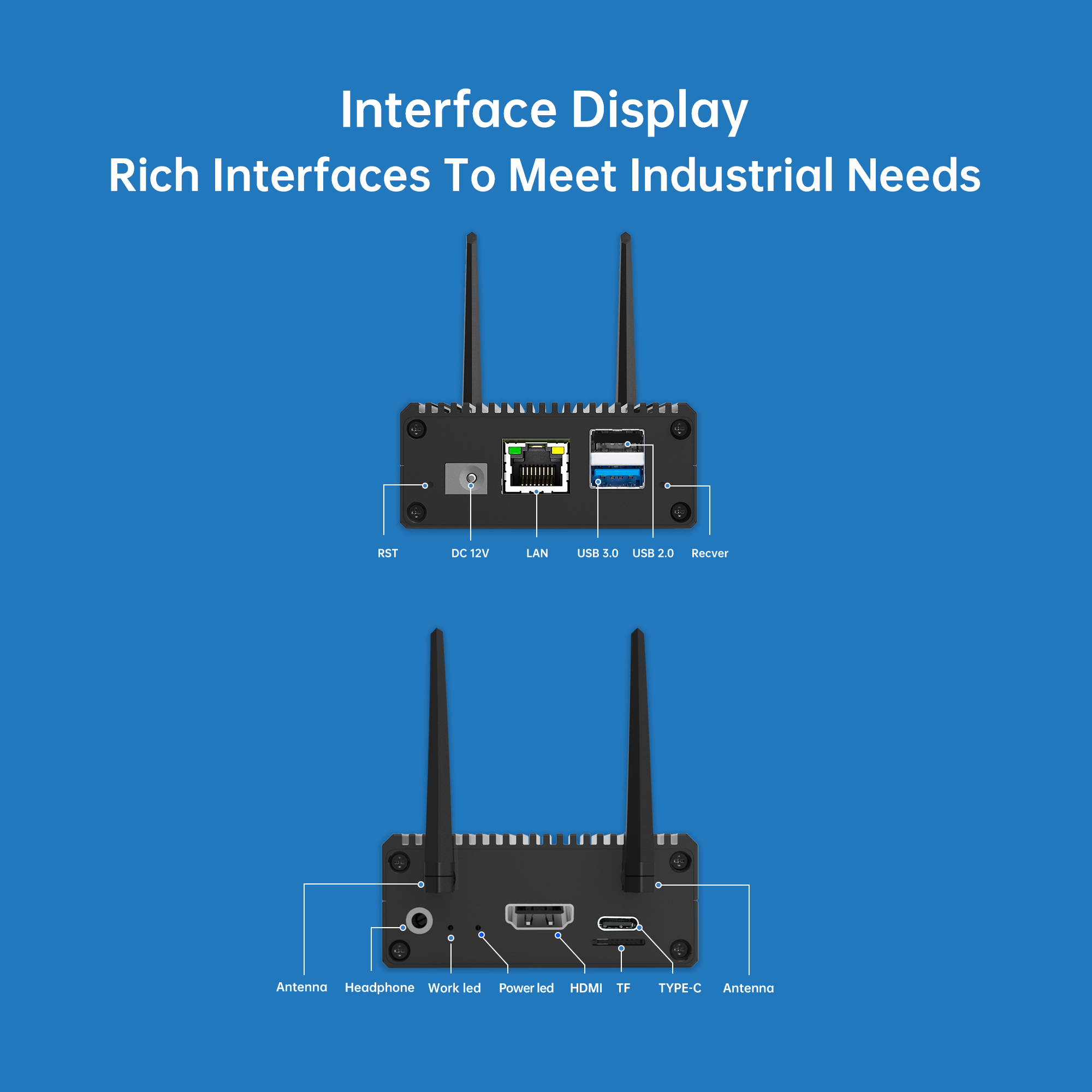

USB Other interfaces |
1×USB3.0 |
|
1× USB-Cfull function interface (USB3.0 OTG / DP1.4) |
|
|
1×USB2.0 |
|
|
1× Debug(3P-2.0mm) |
|
|
1× 26P-2.0mmpin(GPIO) |
|
|
RTC |
support |
|
Microphone |
support |
Product Characteristics
Industry Applications
is widely used in edge computing, artificial intelligence, cloud computing, virtual/augmented reality, blockchain, smart security, smart home, smart retail, smart industry and other fields.
